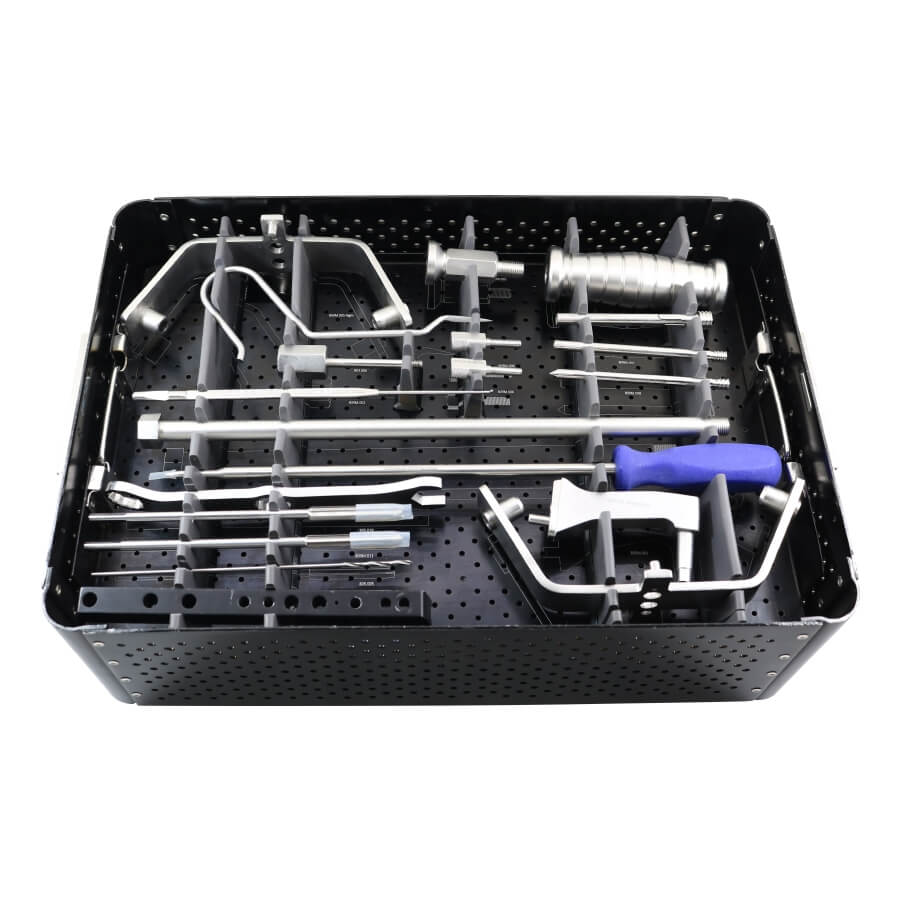

AGC.09A | Multilock Humeral Nail Instrument and Implant Set

Code No.

Description

Qty.

809M.001

Insertion Handle for Multilock Humeral

1

809M.002

Threaded Conical bolt for Multilock Humeral

1

809M.003

Proximal/Distal bar for Multilock Humeral

1

809M.004

Multilock Humeral Proximal Jig Left

1

809M.005

Multilock Humeral Proximal Jig Right

1

809M.006

Fixing Screw For Proximal Jig

2

809M.007

Protection Sleeve 8.0/6.6mm for Multilock Humeral

1

809M.008

Drill Sleeve 6.6/2.7mm for Multilock Humeral

1

809M.009

Pointer 6.6mm for Multilock Humeral

1

809M.010

Depth Gauge for Multilock Humeral

1

809M.011

Starting Reamer for Humeral Nail with Q/C 9.0mm

1

809M.012

Hexagonal Screw Driver 2.5mm Tip Long for

3.9mm Bolt (Multilock Humeral)

1

804.014

Head For Threaded Conical bolt

1

809.005

Starting Reamer for Humeral Nail with Q/C 8.0mm

1

804.007

Extractor-Impactor Rod with Hammer (Set of Two)

1

803.006

Small Bone Awl Diamond Pointed

1

602.008

Drill Bits 2.7mm x 180mm for Jacobs Chuck

1

602.024

Drill Bits 2.7mm x 230mm for Jacobs Chuck

1

895.019

Spanner 19mm

2

895.010

Spanner 10mm

1

807.015

Guide Wire 2.0mm x 500mm With Threaded Tip

3

Code No.

Description

Qty.

370B

Multilock Humeral Nail 7.0mm (Left & Right)

Length : 180mm, 200mm, 220mm, 240mm, 260mm, 280mm, 300mm

1

370C

Multilock Humeral Nail 8.0mm (Left & Right)

Length : 180mm, 200mm, 220mm, 240mm, 260mm, 280mm, 300mm

1

370D

Multilock Humeral Nail 9.0mm (Left & Right)

Length : 180mm, 200mm, 220mm, 240mm, 260mm, 280mm, 300mm

1

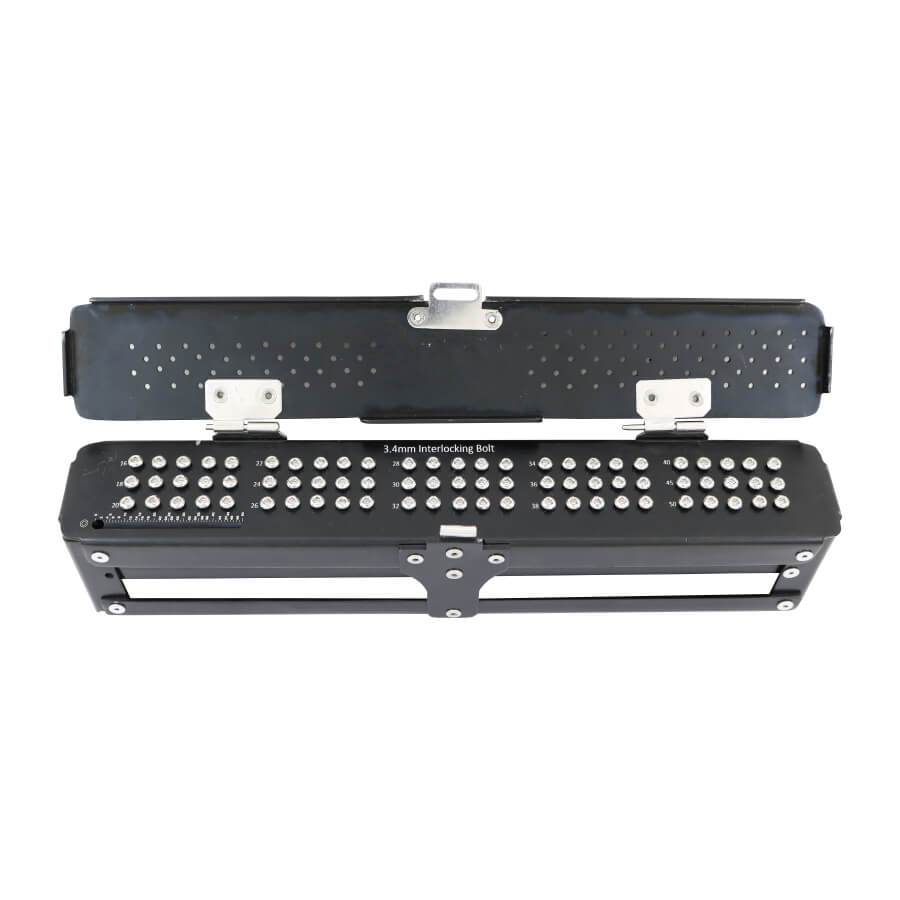

351

3.4mm Interlocking Bolt

Length : 16mm, 18mm, 20mm, 22mm, 24mm, 26mm, 28mm, 30mm, 32mm, 34mm, 36mm, 38mm, 40mm, 45mm, 50mm

4
