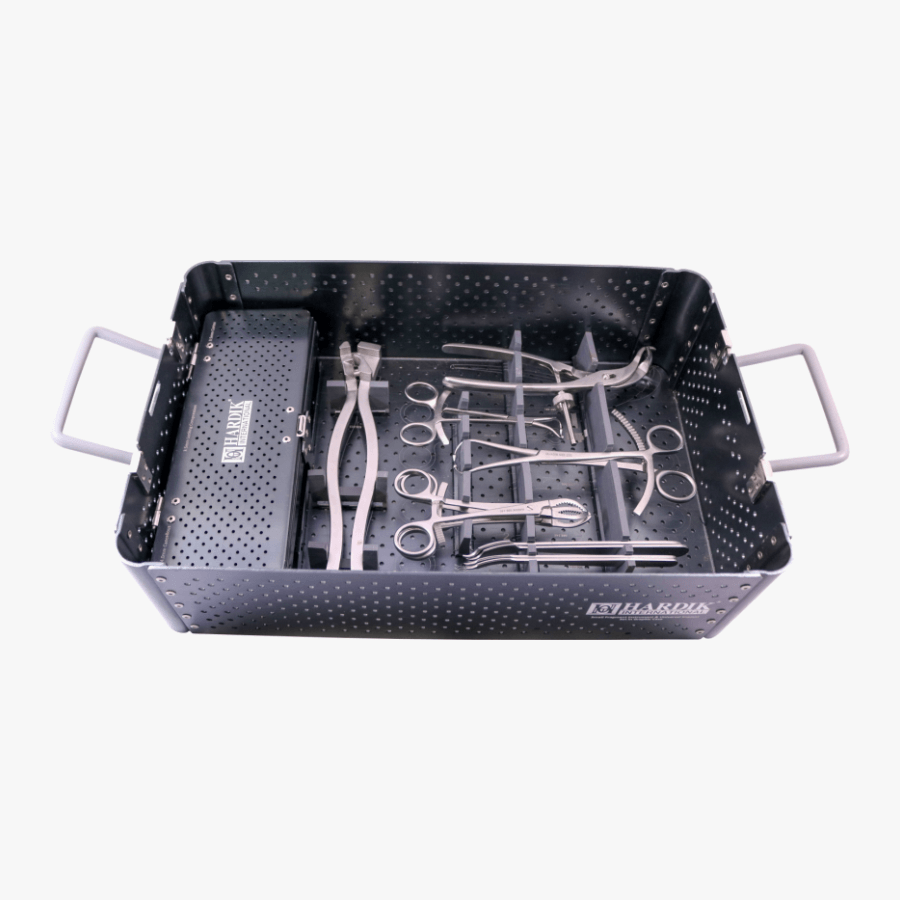

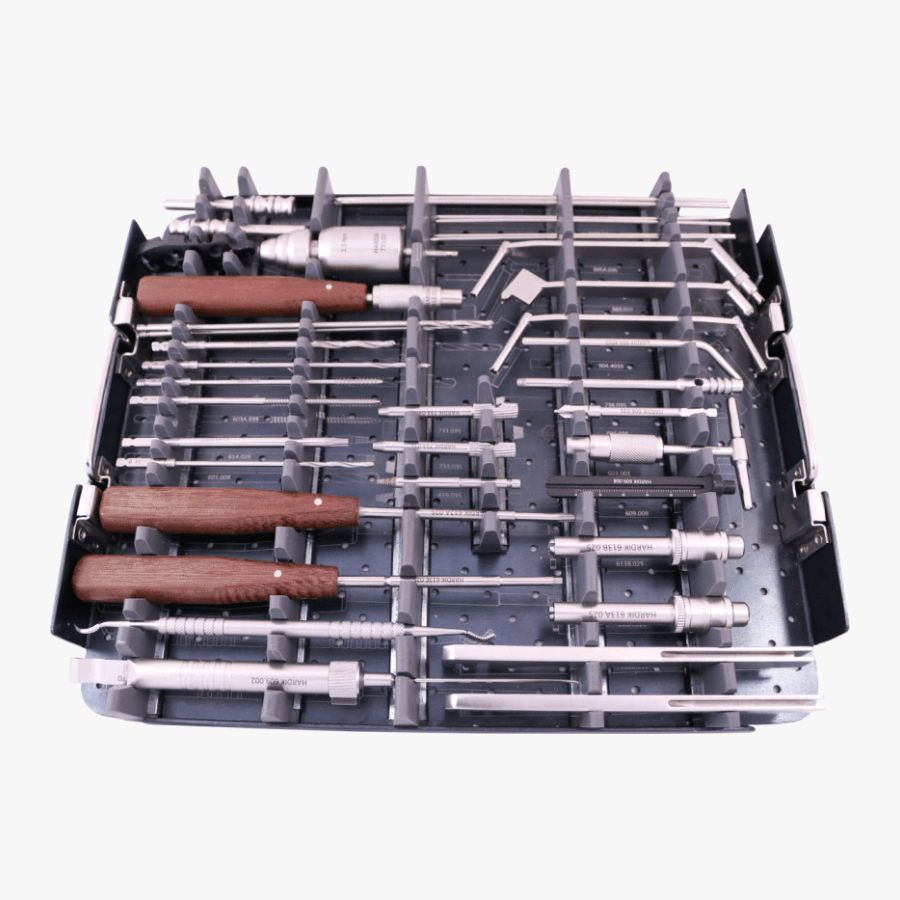

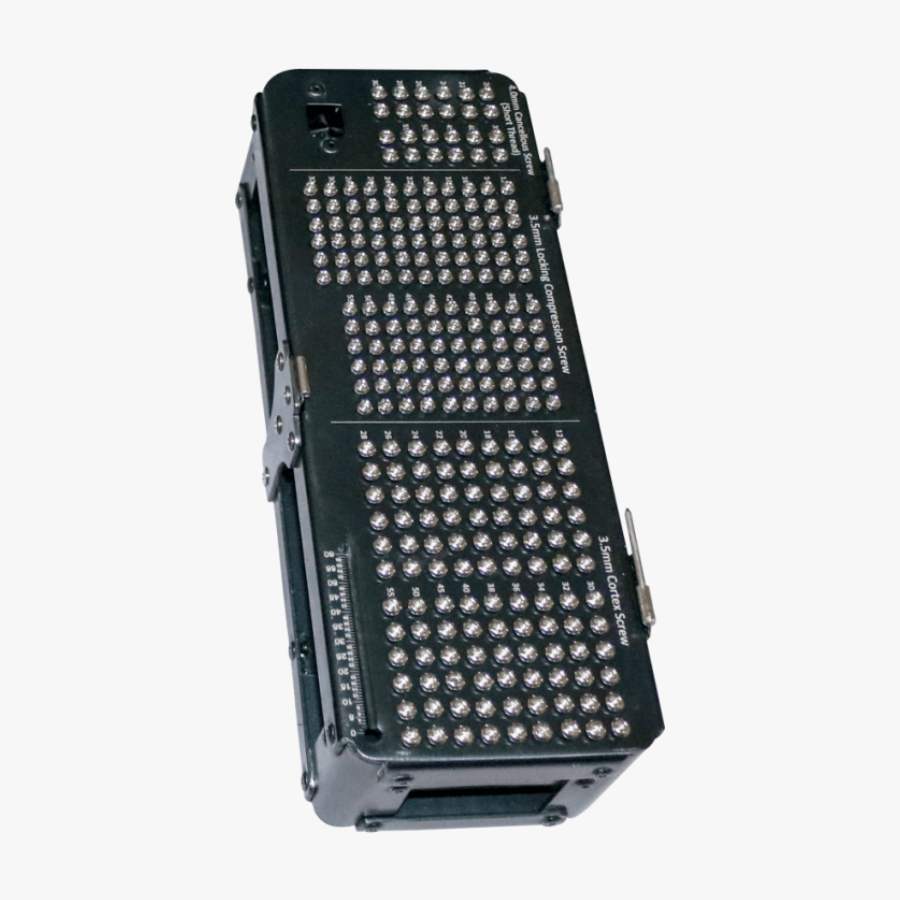

AGC.16 Small Fragment Locking Instrument Set in Graphic Case

Code No.

Description

Qty.

198

2.4mm Locking Compression Screws Star Head

Length : 10mm, 12mm, 14mm, 16mm, 18mm, 20mm, 22mm, 24mm, 26mm, 28mm, 30mm, 32mm, 34mm, 36mm, 38mm, 40mm

5

199

2.7mm Locking Compression Screws Star Head

Length : 10mm, 12mm, 14mm, 16mm, 18mm, 20mm, 22mm, 24mm, 26mm, 28mm, 30mm, 32mm, 34mm, 36mm, 38mm, 40mm, 42mm, 44mm

5

146

3.5mm Locking Compression Screws

Length : 10mm, 12mm, 14mm, 16mm, 18mm, 20mm, 22mm, 24mm, 26mm, 28mm, 30mm, 32mm, 34mm, 36mm, 38mm, 40mm, 45mm, 50mm, 55mm, 60mm, 65mm, 70mm, 75mm, 80mm, 85mm, 90mm

5

148

4mm Locking Cancellous Screws (Fully Thread)

Length : 14mm, 16mm, 18mm, 20mm, 22mm, 24mm, 26mm, 28mm, 30mm, 35mm, 40mm, 45mm, 50mm, 55mm, 60mm, 65mm, 70mm, 75mm, 80mm

3

Code No.

Description

Qty.

459

2.4mm Cortex Screws (Self Tapping) Star Head

Length : 12mm, 14mm, 16mm, 18mm, 20mm, 22mm, 24mm, 26mm, 28mm, 30mm

5

075

2.7mm Cortex Screws (Self Tapping)

Length : 08mm, 10mm, 12mm, 14mm, 16mm, 18mm, 20mm, 22mm, 24mm, 26mm, 28mm, 30mm, 35mm, 40mm

3

451

Cortex Screw 3.5mm (Self Tapping)

Length : 10mm, 12mm, 14mm, 16mm, 18mm, 20mm, 22mm, 24mm, 26mm, 28mm, 30mm, 32mm, 34mm, 36mm, 38mm, 40mm, 45mm, 50mm, 55mm, 60mm, 65mm, 70mm

5

130

4.0mm Cancellous Screws (Short Thread)

Length : 20mm, 22mm, 24mm, 26mm, 28mm, 30mm, 35mm, 40mm, 45mm, 50mm, 55mm, 60mm

2

131

4.0mm Cancellous Screws (Fully Thread)

Length : 20mm, 22mm, 24mm, 26mm, 28mm, 30mm, 32mm, 34mm, 36mm, 38mm, 40mm, 42mm, 44mm, 46mm, 48mm, 50mm, 55mm, 60mm

2

125.01

Washer 10.0mm For Small Screws 10mm/4.6mm

5

Code No.

Description

Qty.

601.005

Drill Bits 1.8mm x 125mm for Quick Coupling T Handle

2

601.031

Drill Bits 2.0mm x 145mm for Quick Coupling T Handle

2

601.021

Drill Bits 2.3mm x 130mm for Quick Coupling T Handle

2

601.023

Drill Bits 2.5mm x 165mm for Quick Coupling T Handle

2

601.024

Drill Bits 2.7mm x 165mm for Quick Coupling T Handle

2

601.019

Drill Bits 2.8mm x 165mm for Quick Coupling T Handle

2

603.001

Quick Coupling T Handle

1

603.027

Tap 2.7mm Cortex Screw For Quick Coupling

1

605A.024

Universal Drill And Tap Sleeve 2.4/1.8mm

1

605A.027

Universal Drill And Tap Sleeve 2.7/2.0mm

1

605A.035

Universal Drill And Tap Sleeve 3.5/2.5mm

1

606.035

Counter Sink for 3.5mm

1

607.035

DCP Drill Sleeve 3.5mm for use 2.5mm Drill

1

609.002

Depth Guage For 3.5mm To 4.0mm Screw Length 80mm

1

609.004

Depth Guage For 2.4mm To 2.7mm Screw Length 60mm

1

609.008

Open Measuring Device

1

610.002

Screw Forceps Self Holding

1

612.011

Quick Coupling Stright Handle

1

614.025

Shaft Small Hexagonal Screw Driver 2.5mm Tip

1

616.013

Universal Plate Bender

1

617.001

Sharp Hook

1

619.035

Screw Remover With Quick coupling 2.5mm Hex

1

655.006

Bone Curette Small 4mm x 6mm

1

660.010

Triple Drill Guide 2.0mm with 3hole Opposite side 1hole

1

660.013

K Wire Bender Iron

1

660.014

Universal Wire Cutter/Bender/Pilers

1

687.144

Self-centering Bone Holding Forceps Length 144mm

1

687.191

Self-centering Bone Holding Forceps Length 191mm

1

688.146

Reduction Forceps Serrated jaws Length 146mm

2

689.126

Reduction Forceps With Points Length 126mm

1

689.140

Reduction Forceps With Points Length 140mm

1

689.205

Reduction Forceps With Points Length 205mm

1

Code No.

Description

Qty.

706.008

Retractorl 8mm wide

2

706.015

Retractor 15mm wide

2

711.001

Periosteal Elevator Curved Blade 6mm wide

1

733.020

LCP Drill Sleeve For variable angle plate 2.4mm, For Drill Bits 1.8mm

1

733.021

Outer Sleeve 6.0/5.0 for Plate

2

733.022

Drill Sleeve 2.8mm

2

733.023

Sleeve for K Wire 1.6mm

2

733.024

LCP Drill Sleeve 2.4mm, For Drill Bits 1.8mm

2

733.027

LCP Drill Sleeve 2.7mm, For Drill Bits 2.3mm

2

733.035

LCP Drill Sleeve 3.5mm, For Drill Bits 2.8mm

2

734.024

Tap 2.4mm Locking Screw For Quick Coupling

1

734.027

Tap 2.7mm Locking Screw For Quick Coupling

1

734.035

Tap 3.5mm Locking Screw For Quick Coupling

1

735.06

Torque Limit Adapter 0.8 Nm

1

735.07

Torque Limit Adapter 1.5 Nm

1

738.035

LCP Plate Holder 3.5mm Length 100mm

1

603A.035

Tap 3.5mm x 110mm for Quick Coupling

1

603A.040

Tap 4.0mm x 110mm for Quick Coupling

1

612A.025

Screw Driver for Holding Sleeve

1

613A.025

Holding Sleeve for Locking screws 3.5/4.0mm

1

613B.025

Holding Sleeve for Non Locking screws 3.5/4.0mm

1

614.T08

Shaft for Star Screw Driver T08 Tip for 2.4/2.7mm screws

1

614.T15

Shaft for Star Screw Driver T15 Tip for 3.5/4.0mm screws

1

614.020

Shaft for Hexagonal Screw Driver 2.0mm Tip for 2.4/2.7mm screws

1

616A.002

Bending Iron Small for Plates 2.7 and 3.5mm

1

616B.002

Bending Iron Small for Plates 2.7 and 3.5mm

1

805.007

4mm Tommy Bar

1

328B.15

K Wire (Double Side Trocar Tip) 1.5mm x 150mm

10

328B.18

K Wire (Double Side Trocar Tip) 1.8mm x 150mm

10

328B.20

K Wire (Double Side Trocar Tip) 2.0mm x 150mm

10

613C.027

Holding Sleeve for Locking screws 2.4/2.7mm

1

613D.027

Holding Sleeve for Non Locking screws 2.7mm

1
