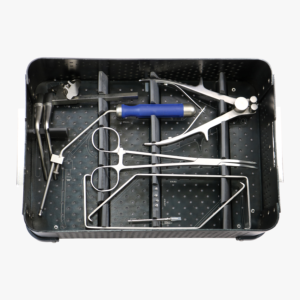

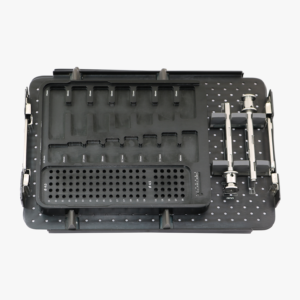

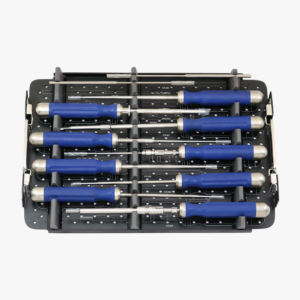

AGC.38 Anterior Cervical Implant & Instrument Set

Code No.

Description

Qty.

676.001

Drill Bit Ø2.5mm x 185mm

2

676.002

Screw Holding Sleeve

2

676.003

Bone Curette for Cervical

1

676.004

Screwdriver Hex 2.5mm

2

676.005

Ø4.0mm Tap with Stopper

1

676.006

Bone Awl for Anterior Cervical

1

676.007

Brace Screwdriver

1

676.008

Nut Screwdriver

1

676.009

Ø2.5mm Hand Drill with Stopper

1

676.010

Plate Holder Forcep

1

676.011

Cervical Retractor

2

676.012

Guider for Drill Bit

1

676.013

Distractor for Anterior Cervical

1

676.014

Location Screw Screwdriver

1

676.015

Brace Screw (3.4mm tap)

2

676.016

Plate Bender for Anterior Cervical

1

676.017

Location Screw

4

Code No.

Description

Qty.

T428

Anterior Cervical Screw-I Size: 4.0mm, 4.5mm

Length: 13mm, 14mm, 15mm, 16mm, 17mm, 18mm

5

T430

Anterior Cervical Screw-II Size: 4.0mm, 4.5mm

Length: 11mm, 13mm, 15mm, 17mm, 19mm

5

T427

Anterior Cervical Plate-I Holes: 4, 6, 8, 10

Length: 25mm, 27mm, 30mm, 32mm, 35mm, 38mm, 41mm, 44mm, 47mm, 50mm, 53mm, 57mm, 60mm,

63mm, 66mm, 69mm, 72mm, 75mm, 78mm, 81mm

1

T429

Anterior Cervical Plate-II Holes: 4, 6, 8

Length: 22.5mm, 25mm, 27.5mm, 30mm, 32.5mm, 35mm, 37.5mm, 40mm, 43mm, 46mm, 51mm, 56mm, 61mm, 66mm, 71mm, 76mm, 81mm

1
