AGC.54 Maxillofacial implant and instrument Set

Code No.

Description

Qty.

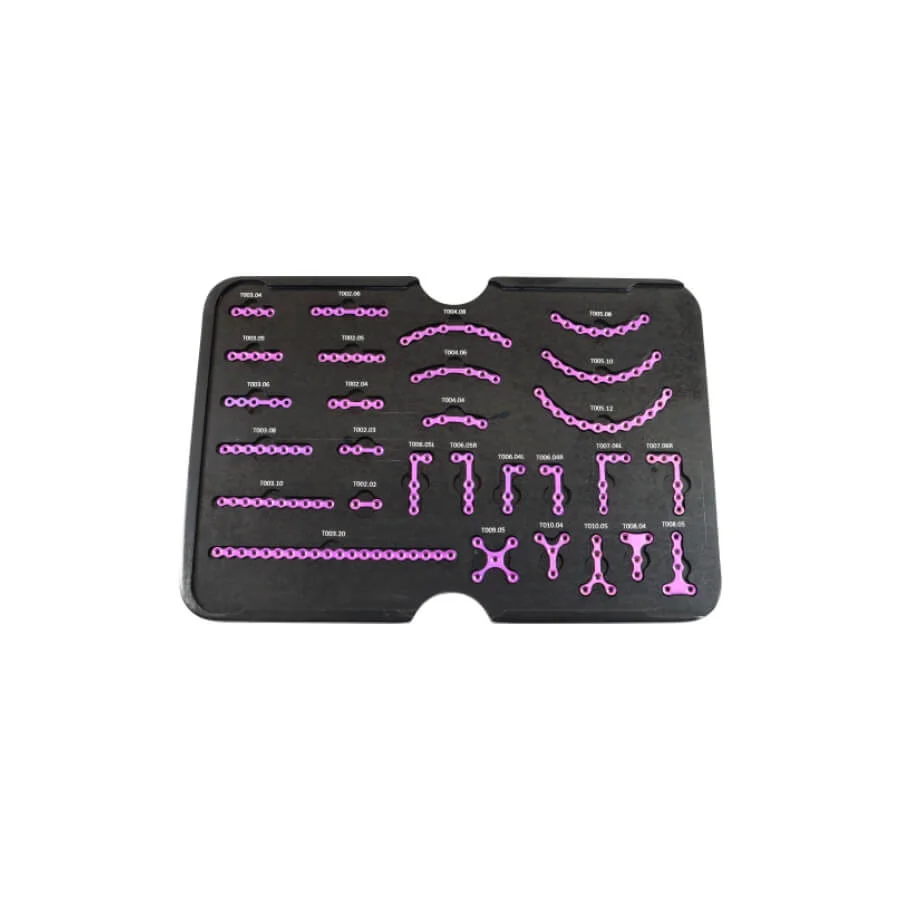

T002

1.5mm Mandible Plate with Center Space

Holes : 2, 3, 4, 5, 6

1

T003

1.5mm Mandible Plate

Holes : 4, 5, 6, 8, 10, 20

1

T004

1.5mm Orbital Plate with Centre Space

Holes : 4, 6, 8

1

T005

1.5mm Orbital Plate

Holes : 8, 10, 12

1

T006

1.5mm L Plate Angle (Left & Right)

Holes : 2+2hole, 2+3hole

1

T007

1.5mm L Plate Angle (Left & Right)

Holes : 3+3hole

1

T008

1.5mm T Plate Head

Holes : 2+2hole, 2+3hole

1

T009.05

1.5mm X Plate

Holes : 5hole

1

T010

1.5mm Y Plate

Holes : 4, 5

1

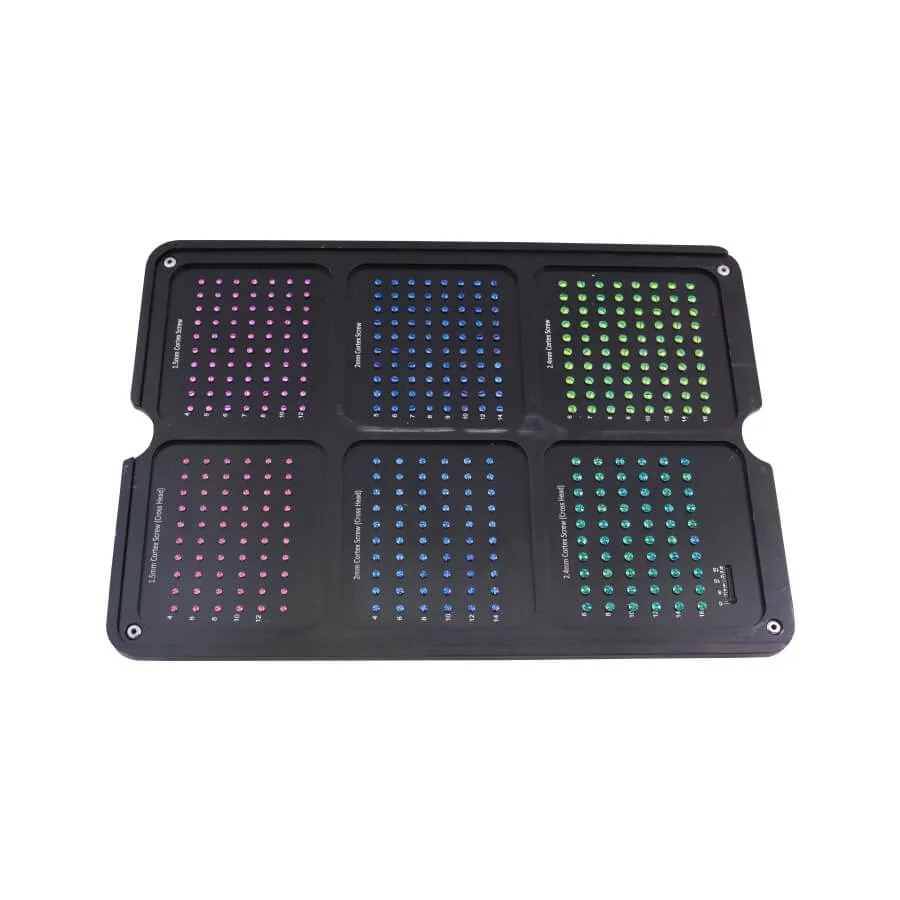

T012

1.5mm Cortex Screw (Cross Head)

Length : 4mm, 6mm, 8mm, 10mm, 12mm

10

T001

1.5mm Cortex Screws

Length : 4mm, 5mm, 6mm, 7mm, 8mm, 10mm

10

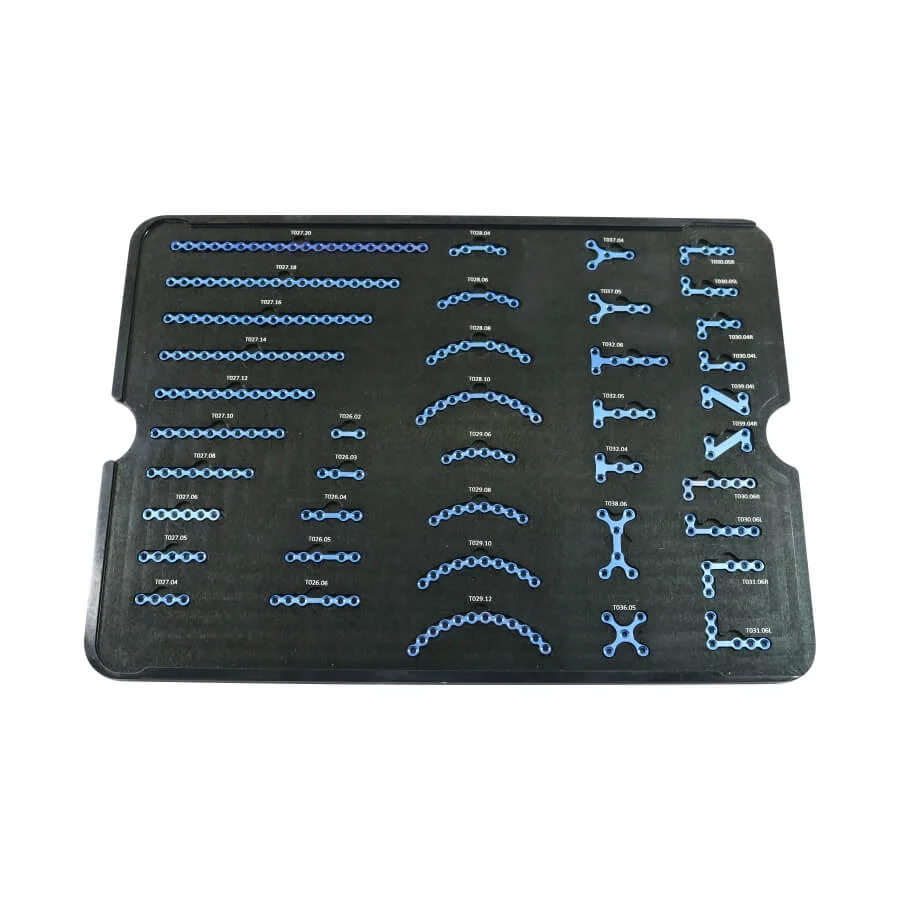

T026

2.0mm Mandible Plate with Center Space

Holes : 2, 3, 4, 5, 6

1

T027

2.0mm Mandible Plate

Holes : 4, 5, 6, 8, 10, 12, 14, 16, 18, 20

1

T028

2.0mm Orbital Plate with Centre space

Holes : 4, 6, 8, 10

1

T029

2.0mm Orbital Plate

Holes : 6, 8, 10, 12

1

T030

2.0mm L Plate Angle (Left & Right)

Holes : 2+2hole, 2+3hole, 2+4hole

1

T031

2.0mm L Plate Angle (Left & Right)

Holes : 3+6hole

1

T032

2.0mm T Plate Head

Holes : 2+2hole, 2+3hole, 2+4hole

1

T036.05

2.0mm X Plate

Holes : 5hole

1

T037

2.0mm Y Plate

Holes : 4, 5

1

T038.06

2.0mm Double End Y Plate

Holes : 6hole

1

T039

2.0mm Z Plate (Left & Right)

Holes : 4hole

1

T024

2.0mm Cortex Screw (Cross Head)

Length : 4mm, 6mm, 8mm, 10mm, 12mm, 14mm

10

T025

2.0mm Cortex Screws

Length : 5mm, 6mm, 7mm, 8mm, 9mm, 10mm, 12mm, 14mm

10

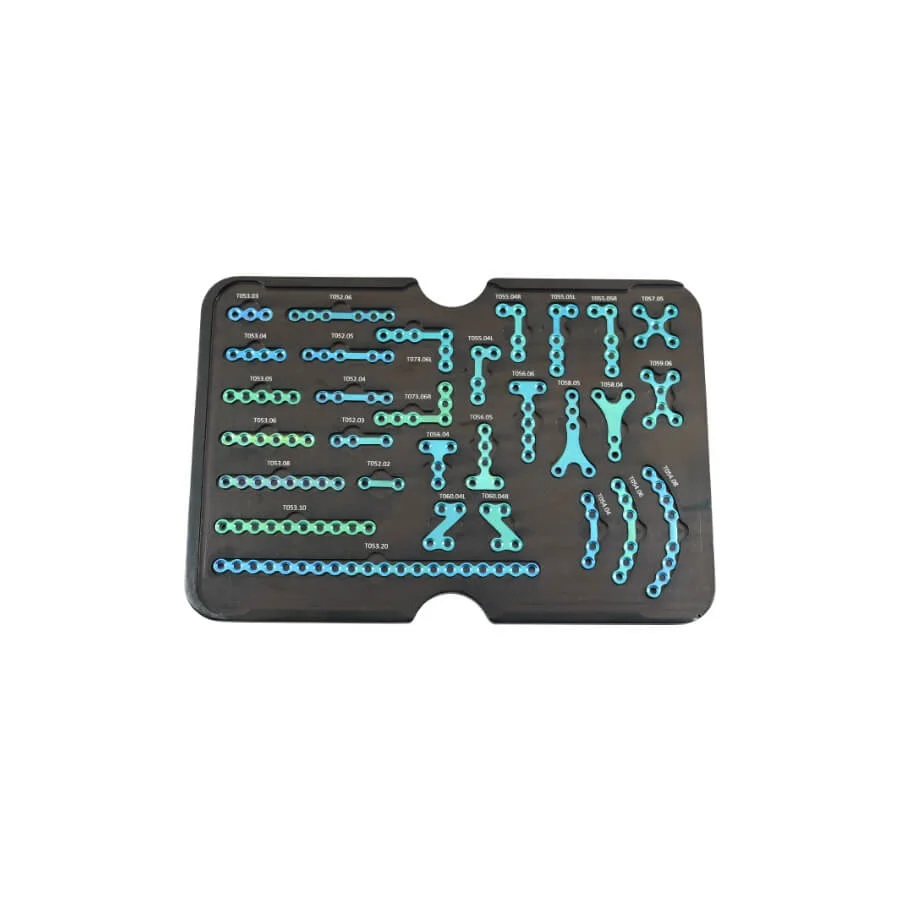

T052

2.4mm Mandible Plate with Center Space

Holes : 2, 3, 4, 5, 6

1

Code No.

Description

Qty.

T053

2.4mm Mandible Plate

Holes : 3, 4, 5, 6, 8, 10, 20

1

T054

2.4mm Orbital Plate with Center Space

Holes : 4, 6, 8

1

T055

2.4mm L Plate Angle (Left & Right)

Holes : 2+2hole, 2+3hole, 3+3hole

1

T056

2.4mm T Plate Head

Holes : 2+2hole, 2+3hole, 2+4hole

1

T057.05

2.4mm X Plate 5hole

Holes : 5hole

1

T058

2.4mm Y Plate

Holes : 4, 5

1

T059.06

2.4mm Double End Y Plate 6hole

Holes : 6hole

1

T060

2.4mm Z Plate 4hole (Left & Right)

Holes : 4hole

1

T066

2.4mm Cortex Screws (Cross Head)

Length : 6mm, 8mm, 10mm, 12mm, 14mm, 16mm

10

T051

2.4mm Cortex Screws

Length : 6mm, 7mm, 8mm, 9mm, 10mm, 12mm, 14mm, 16mm

10

Code No.

Description

Qty.

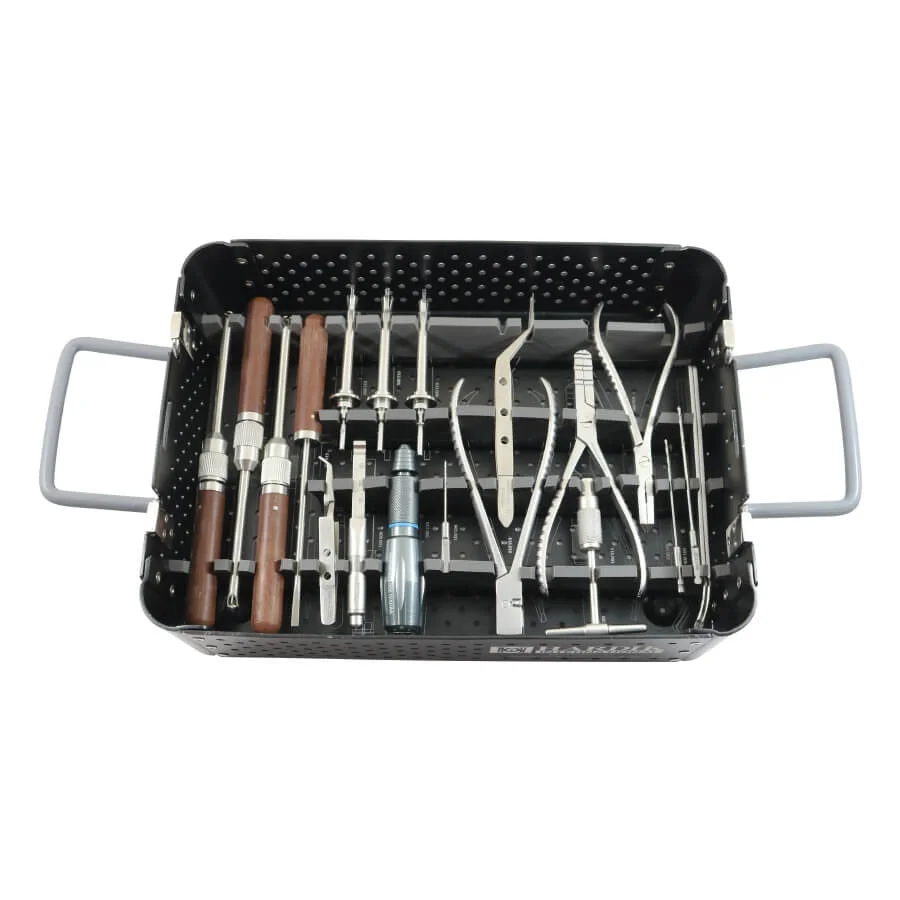

601.001

Drill Bits 1.1mm x 60mm for Quick Coupling T Handle

1

601.002

Drill Bits 1.5mm x 85mm for Quick Coupling T Handle

1

601.006

Drill Bits 2.0mm x 100mm for Quick Coupling T Handle

1

603.001

Quick Coupling T Handle

1

612.003

Shaft For Self Holding Screw Driver 1.5mm Cross Head Screw

3

612.004

Shaft For Self Holding Screw Driver 2.0mm Cross Head Screw

1

612.005

Shaft For Self Holding Screw Driver 2.4mm Cross Head Screw

1

612.006

Quick Coupling Handle For Mini Screw

1

616.001

Bending Iron for Plates 1.5 and 2.0mm

1

616.003

Bending Pliers for thin Plates 1.5 to 2.7mm

1

616.010

Mini Plate Cutter

1

610.001

Mini Screw Forceps Self-Holding

1

611.001

Mini Plate Forceps Self-Holding

1

609.001

Mini Depth Gauge

1

706.006

Retractor 6mm wide

2

Optional : if sloted screw is used

614.001

Mini Slot Screw Driver

1

615.001

Mini Slot Screw Driver with Holding sleeve for 1.5mm Screws

1

615.002

Mini Slot Screw Driver with Holding sleeve for 2.0mm Screws

1

615.003

Mini Slot Screw Driver with Holding sleeve for 2.4mm Screws

1

Optional : if Locking plates used

733.070

LCP Drill Sleeve 1.5mm, For Drill Bits 1.1mm

1

733.071

LCP Drill Sleeve 2.0mm, For Drill Bits 1.5mm

1

733.072

LCP Drill Sleeve 2.4mm, For Drill Bits 2.0mm

1
